| 1、SMART WHITEBOARD ALL-IN-ONE - NIOVISION 55 inch smartboard is based on android 11 os,equipped with 4GB RAM+32GB ROM,use 4 core Cortex-A85 Amlogic T982 processor,supports WiFi6 connections.With an open app ecosystem,you can download the apps you need for conferencing,teaching,home movies,etc.Smart tv/touch screen/computer/projectors/whiteboards all in one. 2、WIRELESS AND WIRE SCREEN-SHARING - This smart boards supports wireless screen sharing for up to 4 devices simultaneously, enabling multiple users to edit and share documents in real time.NIO-5501 interactive whiteboard supports the connecting 2 displays through HDMI2.1 and Type-C at the same time,which allows you to easily perform multiple tasks and greatly improve the working efficiency. 3、GOOD COLLABORATIVE EXPERIENCE - This interactive whiteboards has two 8Ω15W midrange speakers for realistic 3D stereo sound and real-time remote video conferencing,which greatly enhances the immersive and collaborative experience.The interactive whiteboard display supports up to 4 users to screencast simultaneously via Airplay and Eshare,or by connecting in via HDMI. 4、SMOOTH AND ACCURATE WHITEBOARD - This interactive board supports multi-person writing,2mm high precision positioning,20 points touch writing and 8ms response-time,ensures a natural writing and drawing experience.It has a gesture side menu,the menu can quickly adjust the brightness and the sound,switch the signal source,image zoom in,zoom out,rotate and Palm eraser. 5、55 INCH PORTABLE STAND - This interactive whiteboards are equipped with touch pen, warranty card,certificate of conformity, instruction manual,remote control,1.5 meter power cord.NIO-5501 smart digital whiteboard designed with metal texture and Anti-glare glass,which can protect the LCD glass and strengthen the visual effect and can greatly reduce the generation of scratches. | |||||||||
NIO-5501
NIOVISION
NIO550104
55-inch NIO-5501 model (dual system) infrared touch teaching and conference all-in-one machine specification sheet |
Specification model : NIO-5501 |

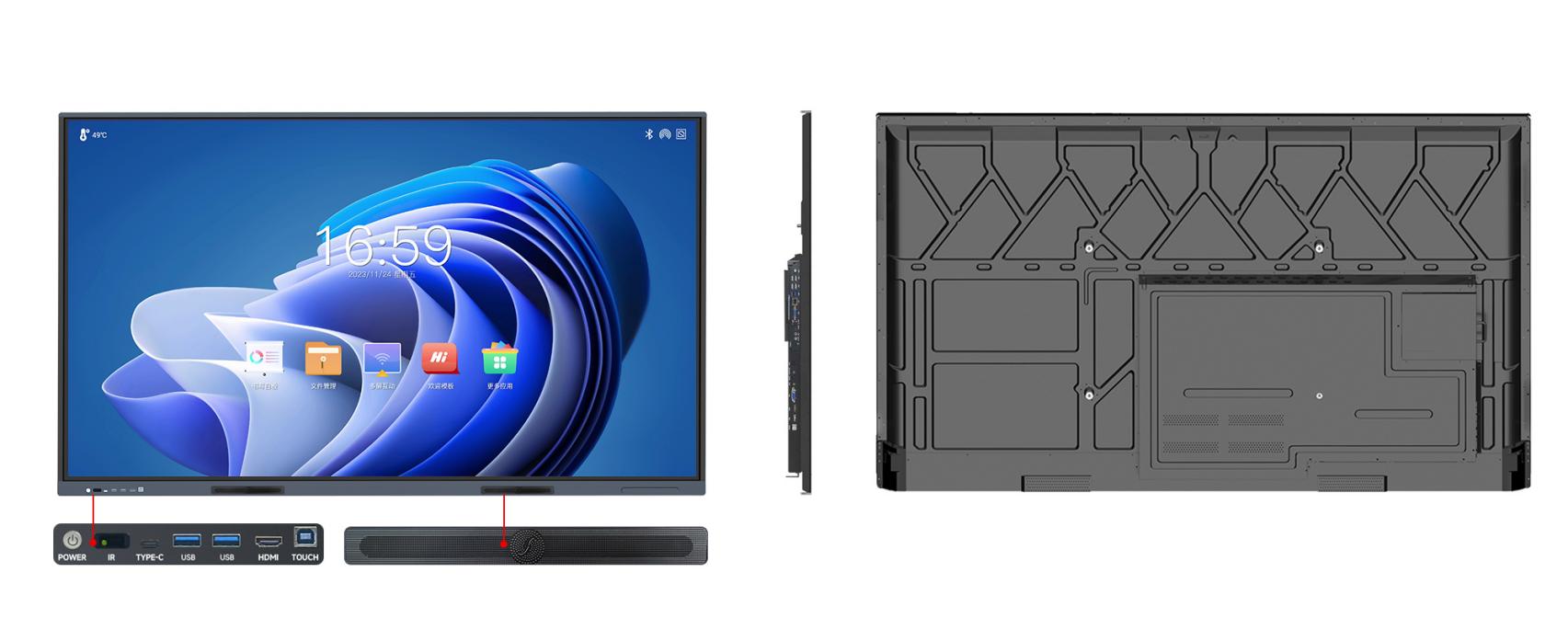

Renderings |
|
Machine description |
1) Ultra-thin aluminum front frame, surface sprayed with fine sand and anodized, zinc alloy electroplated corner code, sheet metal back cover, the whole machine has a strong metallic texture and active heat dissipation;
2) Optional anti-glare tempered glass protects the LCD glass and enhances visual effects, protects viewing eyesight and improves touch experience;
3) Standard high-precision infrared touch strip: 1-Touch accuracy <1mm; 2-Supports two 2mm nibs for writing at the same time; 3-Supports five 3mm nibs for writing at the same time;
4 ) Supports multiple people writing small characters within 1cm in height; 5-Double-color pen recognition accuracy 100%; (requires the support of Android whiteboard software) 6-Pen lifting height <1mm,
Write foreign characters without breaking the pen (meeting the standards of UNESCO supplier Promethean) ;
5) The structure is designed with low touch and zero stickers, and the touch writing experience is super strong;
6) Operating system: Android and Windows optional;
7) The speaker is placed in front of the speaker to prevent the sound effect from deteriorating due to the built-in environment ;
8) Using the international standard OPS slot, the integrated plug-in design makes it easy to upgrade and maintain. There are no visible computer module connection lines on the outside, and the body is beautiful ;
9) Supports gesture side pull-down menu, which can quickly adjust brightness, sound, and switch signal sources ;
1 0 ) Direct module backlight, mature, stable and highly durable;
11) Supports WIFI wireless connection and network port wired connection ;
12) The system comes with functions such as screen projection, electronic whiteboard, and annotation;
13) Front expansion port: 2 USB, 1 HDMI input, 1 TYPE-C, 1 TOUCH USB, convenient for users to use external devices
14) Supports multi-touch screen. When used with a PC motherboard as a dual-system all-in-one machine, the touch box can seamlessly switch between dual systems (windows/Android);
15) Android 11.0 system support, multi-theme system settings and switching at any time, startup LOGO setting customization and other functions;
1 6) Supports handwritten annotation function on any screen on Android and computer, supports real scene annotation and panoramic writing annotation function. Support gesture side- pull navigation bar,
Commonly used function shortcut keys can be called up with one click .
Display parameters | screen size | 55 "LED screen (16:9) : 1209.6 x 680 mm [ HxV] | |||
Screen brand | Original new ultra-clear LED screen | ||||
resolution | 1920 (H) × 1080 (V) / 3840 (H) × 2160 (V) optional | ||||
Viewing angle | 178 degrees(H):178 degrees(V) | ||||
brightness | 3 5 0cd/m2 | ||||
Contrast | 5,000 :1 | ||||
Response time | 8ms | ||||
Color gamut | 72% | ||||
scanning frequency | 4K - 60HZ | ||||
Backlight | DLED | ||||
show output | HDMI | ||||
color format | PAL,NTSC | ||||
sound | 3D stereo sound output power 2*1 0W | ||||
Display protection | Anti-glare tempered explosion-proof glass | ||||
touch constant | Touch embed | Built-in integrated, not plug-in | |||
touch sensing technology | Infrared sensing touch recognition technology ( 20 points) | ||||
writing style | Finger, stylus or other device with a diameter of not less than 2 mm | ||||
cursor speed | 120 points/s | ||||
positioning accuracy | More than 90% of the touch area is ± 1 mm | ||||
Communication Interface | Type B USB male connector | ||||
touch resolution | 32767*32767 | ||||
touches | unlimited theory | ||||
computer response | System automatic identification; ≤ 15ms | ||||
driver | No need to drive | ||||
touch function | Support 20 -point computer touch operation , support image enlargement, reduction, and rotation | ||||
Machine parameters | motherboard system | Android 11.0 | |||
motherboard processor | Amlogic T982 processor Quad-core Cortex-A55 | ||||
Motherboard storage space | 32G | ||||
motherboard memory | 4G | ||||
input port | RJ45 network cable interface* 1 , AV input interface*1, HDMI 2.1 interface*1, USB 3.0 interface*1, USB 2.0 interface*1 | ||||
Output port | Coaxial output, headphone audio output, touch output interface, RS232 | ||||
front port | USB *2 , HDMI IN, TOUCH USB , TYPE-C | ||||
Storage environment | Storage temperature: -20℃~60℃; Storage humidity: 10%RH~90%RH | ||||
working environment | Working temperature: -10℃~55℃; Working humidity: 10%RH~90%RH | ||||
Installation method | Hanging rack (standard configuration) | ||||
Hanger hole spacing | 400 ×400MM | ||||
Power supply type/method | Three-core power supply/fixed | ||||
Power interface specifications | American Standard、 European Standard、British Standard | ||||
Power consumption | About 72 watts | ||||
voltage range | 190 ~ 260V/50~60Hz | ||||
Audio | 2 front 8Ω 10W mid-range speakers | ||||
Embedded wall installation dimensions | 1265 * 763.8 * 83.3 | ||||
Embedded wall installation principles | One side is enlarged by 20mm | ||||
Standby power consumption | ≦0.5W | ||||
Theoretical service life | ≧50000 hours | ||||
Computer Configuration | Mid/i3 configuration | High configuration/i5 configuration | High configuration/i7 configuration | ||
Intel chipset | |||||
Intel Core i3-2nd generation/4th generation | Intel Core i5-2nd generation/4th generation | Intel Core i7-2nd generation/4th generation | |||
4G DDR3 memory/2.5-inch 128G hard drive | 4G DDR3 memory/2.5-inch 128G hard drive | 4G DDR3 memory/2.5-inch 128G hard drive | |||
Intel HD Graphics | Intel HD Graphics | Intel HD Graphics | |||
input port | 1*LAN port, 3*USB3.0 port, 3*USB2.0 port, 1*MIC-IN port | ||||
Output port | 1*HDMI port, 1*VGA port, 1*LINE-OUT port | ||||
operating system | Windows 7 Ultimate operating system ( optional for Win10 operating system ) | ||||
Random accessories | Standard accessories: touch pen, warranty card, certificate of quality, manual, remote control, 1.5m power cord | ||||
Overall machine size chart | |||||
| |||||
